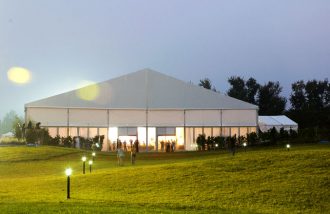

L2 Series Event Tent

Tent Size
Clear-Span Width:
15m / 18m / 20m / 25m
Bay Distance: 5m
Minimum Tent Length: 15m
Maxnimum Tent Length: No Limit

Frame Specifications
Main Profile: 350 x 120 x 5mm
(4-channel)
Max Allowed Windspeed: 80km/hr 0.5kn/m2
Eave Connection: Hot-dip galvanized twin steel plate
Framework Material: Hard pressed extruded aluminium 6061/T6 (13HW)

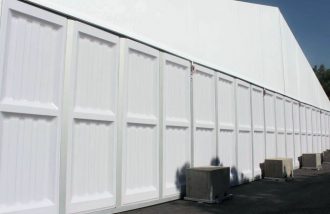

Wall Fabrics
650gsm White PVC
850gsm Coloured PVC
950gsm Clear PVC

Cover Material
850gsm White or Coloured PVC
950gsm Clear PVC

Clear-Span Width Bay Width Eave Height Ridge Height Max. Tent Length
50m 5m 4.02m 12.25m No Limit
Clear-Span Width Bay Width Eave Height Ridge Height Max. Tent Length
50m 5m 4.02m 12.25m No Limit

30m Gable Span
